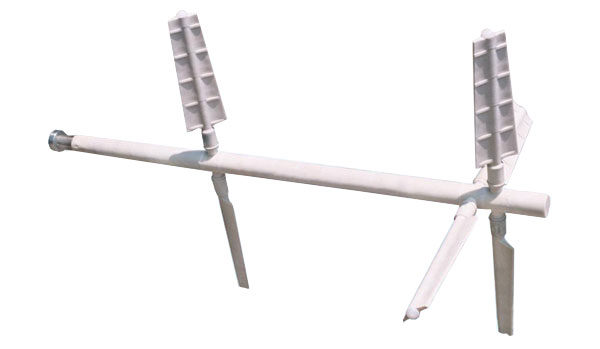

Corr Mix Injection Molded PVDFPP + Steel Agitator

DAYBREAK has long been well known for its capabilities in the manufacture of equipment for the use in extremely corrosive conditions. The company has gained a reputation for the solution of difficult problems in this area. DAYBREAK is in the favor of using the latest high performance materials coupled with unique manufacturing techniques perfected in it's own workshops. Steel reinforced injection molded fluoropolymer agitator is one such product.

Difference between injection molded surface and lined surface

The Unique combination insert molding of polymer and steel provides perfect bonding between steel and fluoropolymer in the process common problems like air gaps, bulging observed in lined surfaces are totally avoided. The end product is joint-less combination of steel and polymer.

General characteristics

The corr-mix range result of many years of expertise in the design and construction of equipments used to fight corrosion.

Sealing
  • Gland Packing
  • Single and double mechanical seals
Capacity
  • 10 ltrs to 10000 ltrs
Operating conditions
  • Tempreture upto 125C
  • Pressure with vacuum
  • Viscosity up to 1000 Pas
Construction Materials
  • Mother surface: Mild steel and stainless steel
  • Coating: PVDF (Polyvinylidene Fluoride)
  • PP (Polypropylene)
  • GFPP (Glass Filled Polypropylene)
Applications
  • Chlorination (Resistance to HCL H2SO4 and other acids)
  • Fermentation (Sugar derivatives, amino acids, antibiotic, polypeptides‚Ķ)
  • Fine chemicals (synthesis of active ingredients)
  • Reaction of ozonization, oxidation, sulfonation
