— Sealless Magdrive Centrifugal Pumps —
|
| |

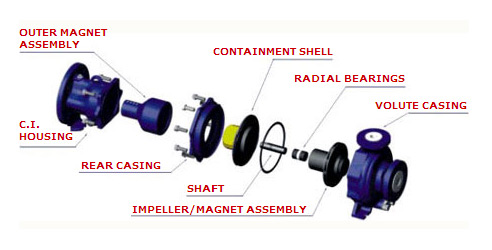

| Typical Magdrive Pump Construction |
|
| |
| Construction |
PUMPS PARTS |
GF |
VF |
Volute Casing |
GFR-PP |
PVDF |
Impeller |
GFR-PP |
PVDF |
Rear Casing |
GFR-PP |
PVDF |
'O' Ring |
FKM |
FKM |
Shaft |
AI20399,7% |
AI20399,7% |
Guide Bushing |
GFR-PTFE |
CFR-PTFE |
Mouth Ring |
GFR-PTFE |
CFR-PTFE |
Front-Thrust Washer |
AI20399,7% |
AI20399,7% |
Bust-Thrust Bearing |
AI20399,7% |
AI20399,7% |
|
| |
| Material Label |
| GFR-PP : |
Glass Fibre Reinforced Polyproplene |
| PVDF : |
Polyvinilidenefluoride |
| GFR-PTFE : |
Glass Fibre Reinforced Polytetrafluoroethylene |
| CFF-PTFE : |
Carbon Fibre Filled Polytetrafluoroethylene |
| AI20399,7% : |
Alumina Ceramic at 99, 7% (high purity) |
| FKM : |
Fluorinated Elastomer (p.e: VITON) |
| EPDM : |
Ethylene-Propylene Rubber |
| FEP : |
Fluorinated, Ethylene-Propylene Copolymer |
|
| |
| Dimensions in mm |
|
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
DB-MG-15 |
40 |
60 |
96 |
116 |
40 |
28 |
55 |
110 |
14 |
14 |
45 |
225 |
DB-MG-30 |
40 |
60 |
96 |
116 |
38 |
30 |
56 |
115 |
18 |
18 |
45 |
235 |
DB-MG-50 |
40 |
60 |
96 |
116 |
54 |
44 |
56 |
124 |
20 |
20 |
60 |
290 |
DB-MG-85 |
55 |
65 |
115 |
142 |
54 |
58 |
81 |
170 |
26 |
26 |
85 |
302 |
DB-MG-115 |
55 |
65 |
115 |
142 |
64 |
58 |
81 |
170 |
26 |
26 |
102 |
350 |
DB-MG-300 |
0 |
60 |
100 |
144 |
80 |
58 |
114 |
250 |
11/2"
BSP |
11/4"
BSP |
215 |
490 |
DB-MG-520 |
90 |
105 |
202 |
245 |
95 |
61 |
120 |
270 |
2"NPT |
11/2"
NPY |
230 |
610 |
|
